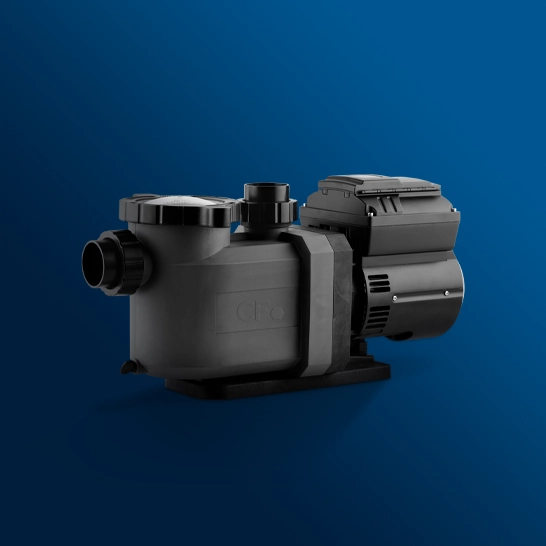

CF VS variable speed filtration pump

• Three programming modes:
– Manual function with different filtration speed selection.
– Easy cyclic program function with single timer in 24h.
– Daily Program function up to 8 timers selection with different filtration speed according to the swimming pool needs.
• Supplied with 63 mm union fitting and tapped in 2’’. 50 mm union fitting is also supplied in the packaging with specific manual.
• Adjustable suction height : the pumps are delivered mounted on a 21 mm wedge (ZDVC73) to achieve a suction height of 206 mm.
This wedge can be replaced or removed to achieve higher or lower heights : The suction height can be adjusted using different wedges. CALE10 and CALE15 can be stacked as many times as necessary on the pump, on the wedges ZDVC72 or ZDVC73.
• Intelligent protection built-in overvoltage, undervoltage, overload, short circuit.
• Clear menu, easy operation.
• Designed to work with clean water at temperature not exceeding 35 °C.
• Basket size: 1.4 L.
• Delivered with union fittings and 1.5 meter power cable with plug.
• Salt water compatible up to 5 g/L.
• IPX5.
• IE4 motor.

• Max. flow rate at HMT 10 MCE (m³/h): 17.
• P2 (KW) : 1.4.
• P2 (HP) : 1.
• P2 (KW) : 0.75.
• POWER (A) : 8.
